Descrizione di prodotto

Product Description

Working Factory

More than 30,000 Square meter working factory. Capacity: more than 50set per year

Specification

Model	Max Glass Size			Min Glass Size			Glass Thickness	Install Power (KW)
Model		Flat Glass	Bent Glass	Flat Glass	Bent Glass		Glass Thickness	Install Power (KW)
HNAB1208	---	1250×850	---	200×350	2.5-19	200
HNAB2010	---	2000×1000	---	200×350	2.85-19	250
HNAB2417	---	2440×1700	---	200×400	4-19	300
HNA1236B08	1250×3660	1250×850	100×250	200×350	2.5-19	400
HNA2025B08	2000×2500	2000×850	100×250	200×350	4-19	400
HNA2436B10	2440x3660	2000×1000	100×250	200×350	4-19	500
HNA2436B17	2440x3660	2440×1700	100×300	200×400	4-19	500
HNA2442B17	2440x4200	2440×1700	100×300	200×500	4-19	600
HNA2442B20	2440x4200	2440×2000	200×400	200×500	4-19	600
HNA2442B25	2440x4200	2440×2500	200×400	200×500	4-19	600
HNA2450B20	2440x5000	2440×2000	200x400	200x500	4-19	700
HNA2450B25	2440x5000	2440×2500	200x400	200x500	4-19	700
HNA2860B20	2800x6000	2800x2000	200x500	200x500	5-19	1000
HNA3380B20	3300x8000	3300x2000	200x600	200x500	6-19	1500
HNA33160B25	3300x16000	3300x2500	200x600	200x500	6-19	2800

Company Profile

Glass Can Be Tempered: Building glass, home applicant glass, decoration glass, Low-E glass, furniture glass, etc

Common Bending glass

Reverse bending glass

V type Bending glass

Length flexible bending glass

mould bending

Features of the glass tempering furnace.

1.Stainless Steel Ceramic plates installed at the top of heating elements, which could ensure more even heating, avoid dust falling 2. Ceramic rollers driven by double belts, which can ensure better simultaneous and stable running. 3. Top quality insulating materials for whole heating oven 4. Heating elements use the gapless design (parallelogram shape), which could make the heating more even. This could improve the finished product rate and better product quality. 5. Using ceramic support for heating elements, which could avoid earth to avoid heater trouble

Supply Scope:

1. Loading table 2. Heating section

Force convection system as option ( Compressed air or Turbo Blower )

Vesuvius ceramic roller as option 3. Flat tempering & cooling section 4. Bent tempering & cooling section 5. Unloading table 6. Blower system with Frequency converter 7. Electrical & control system (Siemens PLC, Computer, etc) 8. Technical documents

Flat Glass Tempering Furnace

Double Heating Chamber Glass Tempering Furnace

Continuous Glass Tempering Furnace

Convection Heating Glass Tempering Furnace

Soft Roller Length Bending Glass Tempering Furnace

Mould Bending/Car glass Tempering Furnace

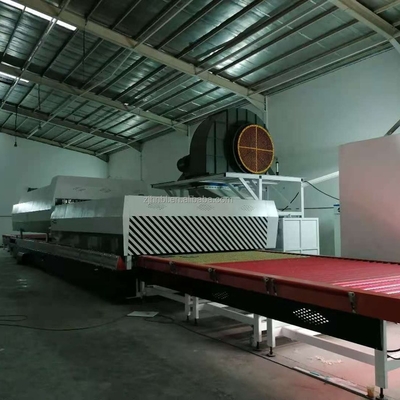

Stores Low-E 5mm Clear Auto Energy-saving Flat And Bent Bi-direction Construction Glass Tempering Equipment Of Building Material

Features of the glass tempering furnace.

Supply Scope:
